Genovation Controlpad Model 854

E-mail this product to a friend E-mail this product to a friend

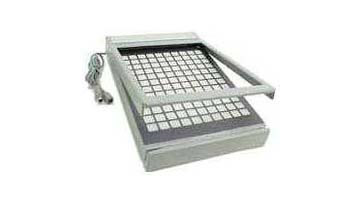

The POS PAGE 854 is versatile, 120-key programmable PS/2 keyboard. The keys are relegendable, allowing you to label them to fit a specific need.

This product may be customized to your company's specification. Call 800-459-7931 or 480-813-3100 for information and pricing.

Out of stock
Price: $0.00



Specifications
Features
Setup
Use

Specifications

Operating Systems Supported:Windows 95 / 98 / ME / NT / 2000 / XP / Vista

Specifications

Mechanical Data:

  • Life Cycles: 1 X 107

  • Key Type: Tactile Membrane (sealed)

  • Operating Force: 0.686N{79gf}

  • Color: Dark gray

  • Number of Keys: 120

Electrical Data:

  • Power Supply: PS/2

  • Key Roll-Over: 2-key

Dimensions: Length x Width xHeight 33cm x 23cm x 5cm (13.0” x 9.0” x 1.75”)

Environmental: OperatingTemperature 0 to 70 degrees C (32 to 158 degrees F);

Operating Humidity: 0% to 98%non-condensing

FCC Rating: Class B Device

Weight: Keypad 1.16kg(2.50lbs); Single Keypad Ship Weight 2.0kg (4.0lbs)

Interface: Type PS/2

Cable Length:  5ft(1.4m)

Connection: PS/2 6-PinMini-Din

NOTE: Custom versions of this product can beordered in OEM quantities. For simple
modifications, customizing, and small quantity orders, please refer to our lineof fully
programmable and customizable keypads, or call Sales for assistance.

Features

The POS PAGE 854 is versatile,120-key programmable PS/2 keyboard. The keys are relegendable, allowing the userto label them to fit a specific need. The internal FLASH memory allows the POSPAGE 854 to connect to most IBM compatible PCs without installing residentsoftware. The POS PAGE 854 is easy to program using the Windows compatiblesoftware provided. The PS2 "Y" wedge adapter allows this POS PAGE 854to wedge a standard PS/2 external keyboard.

  • 120 fully programmable keys with relegendable overlay

  • PS/2 keyboard with “Y” wedge adaptor for external PS/2 keyboards

  • Pre-program internal FLASH memory and operate stand-alone

  • 1 year warranty
