Genovation Controlpad Model 907

E-mail this product to a friend E-mail this product to a friend

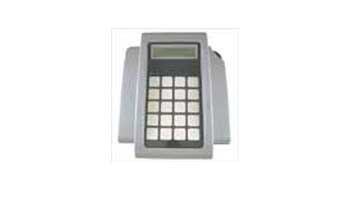

The Genovation MiniTerm 907 is a fully programmable LCD mini-terminal. The MiniTerm 907 supports simple and complex re-programmable key macros and system configurations. Includes detachable serial (RS232) and USB cables for easy setup and different applications. It also has multiple card/tag reader options for fast and easy data transactions.

This product may be customized to your company's specification. Call 800-459-7931 or 480-813-3100 for information and pricing.

Out of stock
Price: $0.00



Specifications
Features
Setup
Use
Specifications

Operating Systems Supported:
RS-232: Windows 95 / 98 / ME / NT / 2000 / XP / Vista
Mac OS, Linux, DOS, Embedded

Windows 95 / 98 / ME / NT / 2000 /XP / Vista

Mechanical Data:
Life Cycles 2 x 107
Key Type Tactile sealed membrane (20,000,000+ operations)
Operating Force 0.686N (79gf)
Color Two tone, light and dark gray
Number of Keys 20

Electrical Data:
Power Supply 5vDC, 60ma (not including card reader).
RS232 adapter supplied, USB bus powered.
Key Roll-Over Selectable 1 or 2 key
Memory FLASH+EEPROM non-volatile, >100 year retention
LCD Display:
Type 2x16 Super-Twist “STN”
Backlight Yes (LED)

Light Emitting Diodes:
Quantity 2
Color(s) 1 Green, 1 Red - Both user programmable

Dimensions:
Length x Width x Height 18.5cm x 15.0cm x 5.3cm (7.25” x 6.0” x 2.25”)

Environmental:
Operating Temperature 0 to 70 degrees C (32 to 158 degrees F)
Operating Humidity 0% to 98% non-condensing
FCC Rating Class B Device

Weight:
Keypad (no options) 0.3kg (0.65lbs)
Single Keypad Ship Weight 1.0kg (2.0lbs)

Interface: RS232
Type Serial RS232C compliant
Cable Length Included 6ft (1.8m), detachable via RJ-45 connection
Optional 25ft (7.6m) cable available
Connection RJ-45 to DB-9 female
Data Rate 1200 to 115.2k baud, full duplex

Interface: USB
Type USB 1.0, 1.1 & 2.0 compliant, bus powered
Cable Length Included 6ft (1.8m), detachable via RJ-45 connection
Optional 25ft (7.6m) cable available
Connection RJ-45 to USB standard Type A
Data Rate USB Full Speed

Interface: Ethernet
Type 10Base-T/100Base-TX (Auto-Sensing)
Cable Length Not included
Connection RJ-45
Protocols TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP

Internal Reader Options:
Barcode Card/Tag/Label Scanner Front firing, visible red beam
Slotted Barcode Card Reader Infrared swipe reader for Barcode ID cards, located on right hand side
Magnetic Card Reader Mag card swipe reader for ATM, driver's license, credit cards, etc. Located on right hand side.
RFID Card/Label/Tag Reader 125kHz or 13.56MHz MiFARE MF1/Ultralight cards, labels and tags. Located on left hand side.
Fingerprint ID Reader Scans and encodes fingerprints into usable biometric data
RS232 Ext. Wedge Device Rear panel RJ45 input jack allows external RS232 serial device wedging/pass-thru

Features

The Genovation MiniTerm 907 is a fully programmableLCD mini-terminal. The MiniTerm 907 supports simple and complex re-programmablekey macros and system configurations. Includes detachable serial (RS232) and USBcables for easy setup and different applications. It also has multiple card/tagreader options for fast and easy data transactions.
  • Easy to set up and use
  • Operates in standard terminal or line-edit (pin-pad) mode
  • 20 keys: sealed re-legendable membrane, 20 million operations
  • 2 x 16 super-twist back-lit LCD (sealed)
  • Two programmable LEDs
  • Fully-programmable serial settings & key table
  • Detachable cables for RS-232 and USB (both included)
  • RS232C compliant (full-duplex), supports a wide variety of baud rates and word formats
  • Selectable USB virtual serial and USB HID keyboard functionality
  • Ethernet device server, Ethernet virtual COM port option
  • Internal buzzer/alarm/audible key beeper
  • "Flash" memory holds key data and settings
  • Includes Genovation re-programming software "MacroMaster232" for easy customization & setup
  • Will work with legacy COM port applications
  • LCD Smartie (serial LCD) plug-in available
  • Supports internal devices such as: Magnetic card reader, Barcode scanner, Barcode slot reader, RFID, and Fingerprint readers.
  • Automated LCD screen (Scripting mode)
  • 1 year warranty
