Genovation Controlpad Model 905

E-mail this product to a friend E-mail this product to a friend

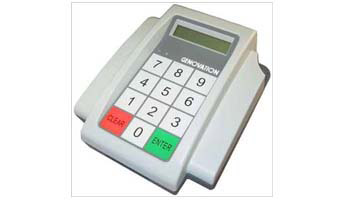

The Genovation MiniTerm 905 is a fully programmable LCD mini-terminal. and supports simple and complex re-programmable key macros and system configurations. Includes detachable serial (RS232) and USB cables for easy setup and different applications. It also has multiple internal device options for fast and easy data transactions.

This product may be customized to your company's specification. Call 800-459-7931 or 480-813-3100 for information and pricing.

Out of stock
Price: $0.00



Specifications
Features
Setup
Use

Specifications

Operating Systems Supported:
RS-232: Windows 95 / 98 / ME / NT / 2000 / XP / Vista
Mac OS, Linux, DOS, Embedded

Windows 95 / 98 / ME / NT / 2000 /XP / Vista

Mechanical Data:
Life Cycles 2 x 107
Key Type Tactile sealed membrane (20,000,000+ operations)
Operating Force 0.686N (79gf)
Color Two tone, light and dark gray
Number of Keys 20

Electrical Data:
Power Supply 5vDC, 60ma (not including card reader).
RS232 adapter supplied, USB bus powered.
Key Roll-Over Selectable 1 or 2 key
Memory FLASH+EEPROM non-volatile, >100 year retention
LCD Display:
Type 2x16 Super-Twist “STN”
Backlight Yes (LED)

Light Emitting Diodes:
Quantity 2
Color(s) 1 Green, 1 Red - Both user programmable

Dimensions:
Length x Width x Height 18.5cm x 15.0cm x 5.3cm (7.25” x 6.0” x 2.25”)

Environmental:
Operating Temperature 0 to 70 degrees C (32 to 158 degrees F)
Operating Humidity 0% to 98% non-condensing
FCC Rating Class B Device

Weight:
Keypad (no options) 0.3kg (0.65lbs)
Single Keypad Ship Weight 1.0kg (2.0lbs)

Interface: RS232
Type Serial RS232C compliant
Cable Length Included 6ft (1.8m), detachable via RJ-45 connection
Optional 25ft (7.6m) cable available
Connection RJ-45 to DB-9 female
Data Rate 1200 to 115.2k baud, full duplex

Interface: USB
Type USB 1.0, 1.1 & 2.0 compliant, bus powered
Cable Length Included 6ft (1.8m), detachable via RJ-45 connection
Optional 25ft (7.6m) cable available
Connection RJ-45 to USB standard Type A
Data Rate USB Full Speed

Interface: Ethernet
Type 10Base-T/100Base-TX (Auto-Sensing)
Cable Length Not included
Connection RJ-45
Protocols TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP

Internal Reader Options:
Barcode Card/Tag/Label Scanner Front firing, visible red beam
Slotted Barcode Card Reader Infrared swipe reader for Barcode ID cards, located on right hand side
Magnetic Card Reader Mag card swipe reader for ATM, driver's license, credit cards, etc. Located on right hand side.
RFID Card/Label/Tag Reader 125kHz or 13.56MHz MiFARE MF1/Ultralight cards, labels and tags. Located on left hand side.
Fingerprint ID Reader Scans and encodes fingerprints into usable biometric data
RS232 Ext. Wedge Device Rear panel RJ45 input jack allows external RS232 serial device wedging/pass-thru
Features

The Genovation MiniTerm 905 is a fullyprogrammable LCD mini-terminal. and supports simple and complex re-programmablekey macros and system configurations. Includes detachable serial (RS232) and USBcables for easy setup and different applications. It also has multiple internaldevice options for fast and easy data transactions.

  • 12-Keys (sealed membrane)
  • 2x16 super-twist back-lit LCD display (sealed)
  • Fully-programmable serial settings & key table
  • Detachable cables for serial (RS232) and USB applications (included)
  • RS232C compliant (full-duplex), supports a wide variety of baud rates and word
  • formats
  • USB Virtual Serial and USB HID keyboard functionality
  • Internal (Programmable) buzzer/alarm, audible key beeper, and 2 LED’s
  • Internal "Flash" memory holds key data and settings
  • Optional Infrared Barcode Scanner
  • Optional Slotted Barcode Swipe Reader
  • Optional Magnetic Card Swipe Reader
  • Optional RFID Card / Label reader
  • Optional Fingerprint ID Reader
  • Optional Ethernet Device Server Host Port
  • Optional RS232 Wedge Port for External RS232 Devices
  • Includes Genovation re-programming software "MacroMaster232" for easy
  • customization & setup
  • Automated LCD Screen (Scripting) Mode.
