Genovation Controlpad Model 900

E-mail this product to a friend E-mail this product to a friend

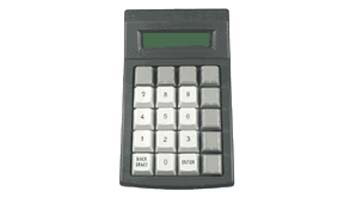

The Genovation MiniTerm 900 is a fully programmable LCD mini-terminal. The MiniTerm 900 supports simple and complex re-programmable key macros and system configurations. Includes detachable serial (RS232) and USB cables for easy setup and different applications.

This product may be customized to your company's specification. Call 800-459-7931 or 480-813-3100 for information and pricing.

Out of stock
Price: $0.00



Specifications
Features
Setup
Use
Specifications

Operating Systems Supported:Windows 95 / 98 / ME / NT / 2000 / XP / Vista

Specifications

Mechanical Data:

  • Life Cycles: 5 X 107
  • Key Type: Cherry, Gold Contact
  • Operating Force: 0.686N{79gf}
  • Color: Dark gray
  • Number of Keys: 20
Electrical Data:
  • Power Supply: 5VDC, <30ma
  • RS232 adapter supplied, USB bus powered
  • Key Roll-Over: 2-key
  • Memory: FLASH non-volatile, >100 year retention
LCD Display:
  • Type: 1x16 Super-Twist “STN”
  • Backlight: LED
Dimensions: Length x Width xHeight 15.5cm x 9.6cm x 3.5cm (6.1” x 3.75” x 1.5”)

Environmental:

  • Operating Temperature 0 to 70 degrees C (32 to 158 degrees F)
  • Operating Humidity 0% to 98% non-condensing
  • FCC Rating Class B Device
Weight:
  • Keypad: 0.3kg (0.65lbs)
  • Single Keypad Ship Weight: 1.0kg (2.0lbs)
Interface: RS232
  • Type: Serial RS232C compliant
  • Cable Length: 6ft (2.0m) (Detachable via RJ-45 connection)
  • Connection: RJ-45 to DB-9 female
Interface: USB
  • Type: USB 1.1 & 2.0 compliant bus powered
  • Cable Length: 6ft (2.0m) (Detachable via RJ-45 connection)
  • Connection: RJ-45 to USB standard Type A
Features

The Genovation MiniTerm 900 is afully programmable LCD mini-terminal. The MiniTerm 900 supports simple andcomplex re-programmable key macros and system configurations. Includesdetachable serial (RS232) and USB cables for easy setup and differentapplications.

  • 20-Keys (Full-Travel 50 million ops) includes relegendable keycaps
  • 1x16 super-twist back-lit LCD display (sealed)
  • Fully-programmable serial settings & key table
  • Detachable cables for serial (RS232) and USB applications (included)
  • RS232C compliant (full-duplex), supports a wide variety of baud rates and word formats
  • USB Virtual Serial and USB HID keyboard functionality
  • Internal buzzer/alarm (audible key beeper)
  • Internal "Flash" memory holds key data and settings
  • Includes Genovation re-programming software "MacroMaster232" for easy customization & setup
  • Operates in standard terminal or line-edit (pin-pad) mode
