Cherry G86-63401EUADAA Keyboard

E-mail this product to a friend E-mail this product to a friend

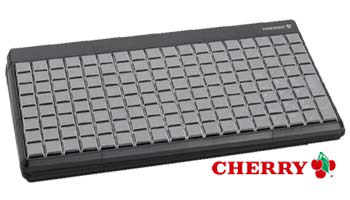

The Cherry G86-63401EUADAA is a programmable keyboard that features multifunctional rows and columns with optional magnetic card reader and touchpad for POS and retail applications.

For pricing and availability, call our Sales Department at 800-459-7931 (or 480-813-3100) or use our convenient contact form.


Out of stock
Price: $0.00



Specifications
Features
Setup
Use

Specifications

Interface: USB 2.0

Current Input: typ. 36 mA

Magnetic Strip Reader Standards: ISO 7811/-12, AAMVA, JIS (others on request)

Durability: 1 million card swipes

Reading speed:
3 - 125 inch/s at 75 Bit/inch
3 - 50 inch/s at 210 Bit/inch

Data is decoded to keyboard scancodes.

Touchpad Resolution: 1000 dpi; 2 switch-activated mouse buttons

Cable Length: approx. 1.85 m

Key Layout: Compact size 142/130 position US key (default)

Weight
approx. 1.4 kg (without packaging)
approx. 1.6 kg (incl. packaging)

Dimensions
approx. 360 x 198 x 38 mm (keyboard)
approx. 415 x 260 x 50 mm (packaging)

Keyswitch Lifetime: 25 million operations

Storage Temperature: -20°C to 60°C

Operating Temperature: 0°C to 50°C

Agency Approvals: cURus, FCC, CE, BSMI, VCCI, C-Tick, GOST-R

Features

Black 14" USB keyboard with touchpad. US 130 position Rows & Columns key layout. All keys programmable and relegendable. Includes ‘Cherry Tools’ configuration software and UPOS drivers.

Main Applications

  • Grocery/Food
  • Hospitality
  • Postal Services
  • Transport
  • Convenience Goods
  • Car Rentals
  • Retail

Special Features

  • 144 Key Position Matrix in 14” Form Factor for Universal Key Function Assignment
  • Robust Product Design with IP 54 Spill and Dust Resistant Key Field for Harsh Environments
  • Plug & Play Configuration for all Common POS Features
  • Unique Function Enhancement with ‘Cherry Tools’ Virtual Programming
  • Fully Programmable and Relegendable Keyboard for Easy Layout Configuration and Quick Function Calls
  • Option for Unlimited Programmability of all Keys in up to 3 Layers Provides Convenient Data Access
  • Moving of Keys’ Allows for Easy Key Position Exchange Including Modifier Funcitons
  • Grouping of Keys Allows for Easy Assignment of 1x2 and 2x2 Key Positions
  • Disabling of Single Key Postions or Complete Rows and Columns with Blank Covers
  • High Performance 3-Track Magnetic Stripe Reader with Freely Programmable Headers and Terminators for Each Track
  • Pop-up Window for Comfortable Display of Programmed Keys
  • Selection of Non-Keyboard Hexcodes Enhances Security for Credit Card Processing

Dual Insertion for Bidirectional Swipe of Magnetic Stripe Card

  • Audible and Visual Indication of MSR Good Read
  • Flexible Parsing and Configuration of Magnetic Stripe Data Including Start/Stop Sentinels
  • Powerful ‘Cherry Tools’ Configuration Software Allows for Quick Product Set Up and Configuration
  • Easy Configuration File Transfer with Windows Explorer
  • Comprehensive UPOS Support for Windows and Linux. Support of Client-Server Architectures
  • Remote Network Installation with Cherry Tools Activator and Runtime Version
  • Touchpad Versions Ensure Easy Cursor Navigation at Minimal Desktop Surface
  • Yellow Status LEDs for Improved Visibility in Rooms with Artificial Illumination
  • Keyboard Comes with Cable and Key Lenses Included in the Box
  • Accessory Kit Includes Multiwide Keycaps and Lenses, Paper Inserts in 5 colors, Blank Covers for Easy Hardware Configuration
