Cherry G83-6744LUZxx-2 Keyboard

E-mail this product to a friend E-mail this product to a friend

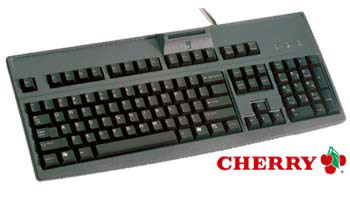

The Cherry G83-6744LUZxx-2 is a Full QWERTY Keyboard With Integrated Smart Card Reader.

For pricing and availability, call our Sales Department at 800-459-7931 (or 480-813-3100) or use our convenient contact form.


Out of stock
Price: $0.00



Specifications
Features
Setup
Use

Specifications

Technical Data
Interface: USB full speed

Current Consumption: max. 100 mA

Cable Length: approx. 1.75 m

Number of Keys
104 = US Layout with Windows™ keys
105 = International Layout with Windows™ keys

Weight
approx. 1250 g (without packaging)
approx. 1500 g (with packaging)

Dimensions
approx. 458 x 195 x 54 mm (keyboard)
approx. 493 x 255 x 58 mm (packaging)

Keyswitch Lifetime: 20 million operations

System Requirements: USB Connection

Insertion Cycles: approx. 100,000

Smart Card Speed: 412,903 bps

Smart Card Clock: 4.8 MHz

Storage Temperature: -20°C to 60°C

Operating Temperature: 0°C to 50°C

Agency Approvals
FCC, GS, CE, c-tick, GHOST-R, VCCI, USB 2.0, EMV 2000 level 1, Microsoft Windows™ ME, 2000, XP

Features

Full QWERTY keyboard with integrated Smart Card Reader. Black housing, USB connection, EAL 3+ certification.

Key Features

  • Common Criteria EAL 3+ certified for electronic signatures
  • Secure PIN entry (class 2 reader)
  • PC/SC smart card reader
  • CT-Api support
  • Protocols T=0, T=1, S=8, S=9 and S=10
  • EMV 2000 Terminal level 1 approved
  • CCID compliant
  • Compliant with ISO 7816
  • Individual and easy key assignment due to our Keym@n Software with new, comfort functions
  • CAC certified and FIPS 201 certified
