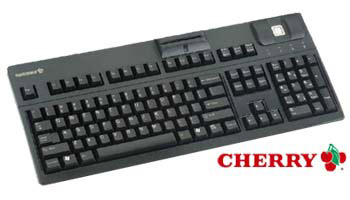

Cherry G83-14401LPAUS-0 Biometric Keyboard with Smart Card R


Cherry G83-14401LPAUS-0 Biometric Keyboard with Smart Card R
Previous  Up  Next"
Cherry G83-14401LPAUS-0 Biometric Keyboard with Smart Card R

E-mail this product to a friend E-mail this product to a friend

The G83-14401LPAUS-0 is an advanced performance line keyboard with an integrated Smart Card Reader and biometric scanner.

For pricing and availability, call our Sales Department at 800-459-7931 (or 480-813-3100) or use our convenient contact form.


Out of stock
Price: $0.00



Specifications
Features
Setup
Use

Specifications

Interface: USB, bus powered device

Current Input: max. 150 mA

Smart Card Interface
Reads and writes all ISO 7816 cards supports T=0, T=1, I²C (S=8), 2 wire (S=10), 3 wire (S=9)

Card Connecting Unit: approx. 100,000 insertions

Smart Card Speed: 412,903 bps

Clock Frequency Smartcard: 4.8 MHz

Sensor Resolution: 250 dpi

Cable Length: approx. 1.75 m

Number of Keys
104 = EU Layout with Windows™ keys
105 = US Layout with Windows™ keys

Weight
approx. 2.62 lbs (without packaging)
approx. 3.30 lbs (with packaging)

Dimensions
approx. 17.9 x 7.7 x 2.1 (keyboard)
approx. 19.4 x 10.0 x 2.3 (packaging)

Keyswitch Lifetime: > 20 million operations

System Requirements: USB Connection

Insertion Cycles
approx. 100,000
Smart Card Speed:
412,903 bps

Smart Card Clock: 4.8 MHz

Storage Temperature: -20°C to 60°C

Operating Temperature: 0°C to 50°C

Agency Approvals
FCC, GS, CE, c-tick, GHOST-R, VCCI Microsoft WHQL Windows™ 2000, XP

Features

Light gray housing, smart card reader with fingerprint sensor, Protektor suite OEM software

Key Features

  • USB keyboard with fingerprint sensor and PC/SC smart card reader
  • Capacitive fingerprint sensor TCS1CD from UPEK (ST-Micro) with TouchChip® technology 256x360 pixel
  • CardMan 3121-compatible Smart card reader
