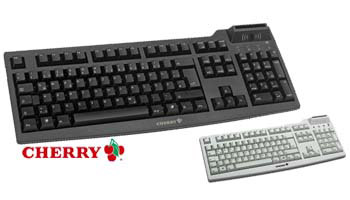

Cherry G83-6675LUAEU-0 with Smart Card Reader


Cherry G83-6675LUAEU-0 with Smart Card Reader
Previous  Up  Next"
Cherry G83-6675LUAEU-0 with Smart Card Reader

E-mail this product to a friend E-mail this product to a friend

The G83-6675LUAEU-0 is a Full QWERTY Keyboard with Combined Contact/Contactless Smart Card Reader.

For pricing and availability, call our Sales Department at 800-459-7931 (or 480-813-3100) or use our convenient contact form.


Out of stock
Price: $0.00



Specifications
Features
Setup
Use

Specifications

Interface: USB full speed

Current Consumption: max. 100 mA

Cable Length: approx. 1.8 m

Number of Keys: 104 = International with Windows Vista™ keys

Weight
approx. 750 g (without packaging)
approx. 900 g (with packaging)

Dimensions
approx. 458 x 170 x 52 mm (keyboard)
approx. 495 x 200 x 55 mm (packaging)

Keyswitch Lifetime: 20 million operations

System Requirements: USB Connection

Insertion Cycles: approx. 100,000 operations

Operating System: Windows 98, ME, 2000, XP, Vista

Smart Card Speed: 412,903 bps

Smart Card Clock: 4.8 MHz

Storage Temperature: -20°C to 60°C

Operating Temperature: 0°C to 50°C

Agency Approvals
FCC, GS, CE, c-tick, GHOST-R, VCCI
EMV 2000 level 1
Microsoft Windows™2000, XP, Vista

Features

Light gray, USB with contact/contactless reader, 104 key layout available in International with € country version

Keyboard Features

  • USB 2.0 keyboard with combined contact/contactless smart card reader
  • Individual and easy key assignment via KeyM@n Software

Smart Card Reader

  • PC/SC
  • ISO 7816 compliant
  • CT-Api support
  • Secure PIN Entry (Class 2 reader)
  • Protocols: T=0, T=1, S=8, S=9, S=10
  • EMV 2000 Terminal level 1 approved
  • CCID compatible

Contactless Smart Card Reader

  • ISO 14443A/B Compatible
  • Status indicator: Duo LED
  • Protocols: T=CL, Mifare
  • Reading distance: <2 cm
  • ICAO compliant
