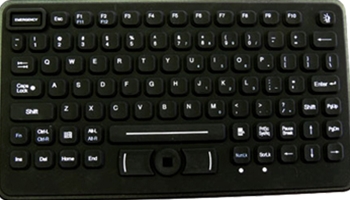

TG3's BLH Series is a LED Backlit, NEMA 4 rated keyboard with integrated pointing device commonly used in mobile public safety applications. NEMA 4 rated for indoor/outdoor use, providing protection from water, dirt and other enviormental conditions.
Datacal -Authorized Distributor of TG3 Products
In stock
Regular Price: $220.00 On Sale For: $205.00
Specifications
Features
Setup
Use
Related Products
Mechanical Specifications
86 key compact design
Overall dimensions: 11.40” wide x 6.38” deep x 1.88” high
Weight: less than 2 pounds
Key switch material: industrial silicon rubber
Key switch life: 10 million cycles
Key switch feedback: tactile
Integrated 2 button rugged sealed pointing device
Coiled cable (custom variations are available)
High impact ABS polycarbonate case, sealed for virtual waterproofness
Mounting pattern on back
Completely customizable
Electrical Specifications
+ 5VDC @ 220mA typical with red backlighting at maximum brightness. Current consumption depends on LED color; please consult factory for details
Interface: PS/2 or USB for standard products; please consult factory for more options
Dimming has eight levels of intensity controlled by a single button
Environmental
Storage temperature: -55°C to +85°C
Operating temperature: -40°C to +70°C
Humidity: 100%
Industrial Ratings²
NEMA 4
UL 60950
CE
FCC Class B
Standard Part Numbers¹
KBA-BLH-5RU.....USB interface, Red LEDs, RoHS compliant KBA-BLH-5RI.....PS2 interface, Red LEDs, RoHS compliant
Important Features
Extremely rugged
Integrated rugged sealed pointing device
Special “Emergency” key which, when pressed, sends a signal of Shift + F1 and is illuminated brighter than other keys for 15 seconds
