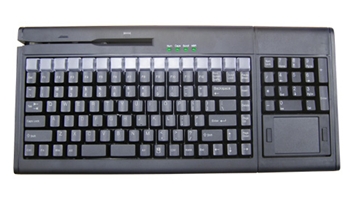

TG121MT Series is a 121 key programmable POS keyboard with Integrated touch pad and MSR Reader. Features 18 programmable keys, programmable magstripe reader, integrated touchpad backed up with a thick metal frame.
Datacal- Authorized Distributor of TG3 Products
In stock
Regular Price: $206.80 On Sale For: $180.00
Specifications
Features
Setup
Use
Related Products
Technical Data
Electronics
Power supply USB: +5V/DC ± 5% PS2: +5V/DC ± 10%
Current input: 100 mA max
Mechanical
Total travel: 0.16 in ± 0.02 in (4 mm ± 0.4 mm)
Pre-travel: 0.08 in ± 0.02 in (2 mm ± 0.6 mm)
Peak load before make: 2.12 oz ± 0.71 oz (60 g ± 20 g)
Key strokes life: QWERTY section: 10 million Numeric section: 50 million
Touchpad
Active area: 2.46 in x 1.83 in (62.5 mm x 46.5 mm)
Other
Storage temperature: -40° C to +60° C
Operating temperature: 0° C to +50° C
Operating humidity: 20% to 90%
Dimensions: 17.3 in x 7.87 in x 1.73 in (439 mm x 200 mm x 44 mm)
Weight: 3.42 lbs (1.550 kg)
Key Features
16 programmable keys
QWERTY section is designed with POS graded membrane keys
Numeric section is designed with mechanical key switches
Magstripe reader settings are programmable
Programmable functions are powered by the Matrix Maker software available for download from our website
Keyboards are backed up by 0.05 in thick metal frame
Different relegendable keycaps (1x1 and 2x1) are available
Supports different country layouts
Integrated touchpad
Detachable cable using tough RJ45 connector
Available in USB or PS2 Interface
Programming Capabilities
Programmable keys can be programmed with 255 characters
All data can be retained for no less than 100 years without additional battery
Does not require a TSR program and hence avoids application software crashes
Multi-layer (or multi-level) programming
Ability to include a variable time delay in each programmed string
Provide a true Caps/Scroll/Numeric Lock function independent of any other keyboards being connected
USB programming through the USB HID interface requiring no drivers; PS2 driver included with Matrix Maker software installation
MagStripe Reader Features
Complies with ISO 7812, IBM standards, AAMVA, JIS-2
Support multi-country code settings
Support programmable MSR setting for the header, separator, suffix and prefix, track sequence, and more
Track 1: 210BPI with max 76 characters
Track 2: 210BPI with max 107 characters or 76BPI with max 37 characters
