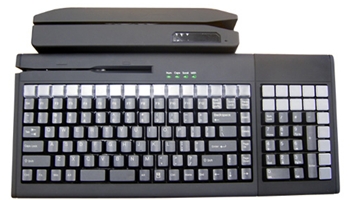

TG3's TG136MC Series is a 136 key programmable POS keyboard with Integrated MSR reader MICR reader. Features 16 relegendable, programmable keys and is backed with a thick metal frame.
Datacal -Authorized Distributor of TG3 Products
In stock
Regular Price: $550.00 On Sale For: $499.00
Specifications
Features
Setup
Use
Related Products
Key Features
16 relegendable programmable keys
QWERTY section is built on POS graded membrane keys
Numeric section is built on Cherry MX key switches
Magstripe reader, MICR settings, and reprogrammable keys are reconfigurable via the Matrix Maker software available for download from our website
Keyboards are backed up by 0.05 in (1.2 mm) thick metal frame reducing the risk of ESD
Different relegendable keycaps (1 fold and 2 fold) are available
Supports different country layouts
Detachable cable using tough RJ45 connector
MICR Features
Powered by industry leading Magtek MICR module
Reads MICR characters on checks, deposit, withdrawal slips and other MICR encoded documents
Motor draw current from 350mA to 650mA; requires external power supply
Support E13-B and CMC-7 MICR fonts
Command driven communications protocol controls functions of module
Reading of checks is automatic and foolproof with no alignment or placement subtleties eliminating human error
MagStripe Reader Features
Complies with ISO 7812, IBM standards, AAMVA, JIS-2
Support multi-country code settings
Support programmable MSR setting for the header, separator, suffix and prefix, track sequence, and more
Track 1: 210BPI with max 76 characters
Track 2: 75BPI with max 37 characters
Track 3: 210BPI with max 107 characters
Card swipe speed: 10 to 100 cm/s
500,000 swipe cycles
Speed:3-125 ips at 75 BPI; 3-50 ips at 210 BPI
Programming Capabilities
Programmable keys can be programmed with 255 characters
All data can be retained for no less than 100 years without additional battery
Does not require a TSR program and hence avoids application software crashes
Multi-layer (or multi-level) programming
Ability to include a variable time delay in each programmed string
Provide a true Caps/Scroll/Numeric Lock function independent of any other keyboards being connected
USB programming through the USB HID interface requiring no drivers; PS2 driver included with Matrix Maker software installation
Technical Data
Electronics
Power supply USB: +5V/DC ± 5% PS2: +5V/DC ± 10% MICR: +5V/DC, 1A max current, external power
Mechanical
Total travel: 0.16 in ± 0.02 in (4 mm ± 0.4 mm)
Pre-travel: 0.08 in ± 0.02 in (2 mm ± 0.6 mm)
Peak load before make: 2.12 oz ± 0.7 oz (60 g ± 20 g)
Key strokes life: QWERTY section: 10 million Numeric section: 50 million
Other
Storage temperature: -40° C to +60° C
Operating temperature: 0° C to +50° C
Operating humidity: 20% to 90%
Dimensions: 17.40 in x 10.37 in x 2.125 in (442 mm x 264 mm x 54 mm)
