Genovation Controlpad Model 682-U


Genovation Controlpad Model 682-U
Previous  Up  Next"
Genovation Controlpad Model 682-U, USB

E-mail this product to a friend E-mail this product to a friend

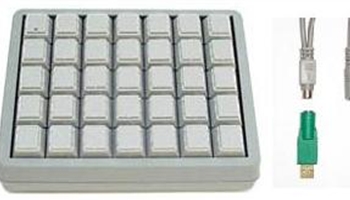

The ControlPad 682-U is a versatile, 35-key programmable keypad. The keys are relegendable, allowing the user to label them to fit a specific need. The non-volatile, programmable memory allows the keypad to connect to any USB  port without installing resident software. The keypad is easy to program using the Windows compatible software provided. Assembled with high quality Cherry MX keyswitches, the keys are durable, yet light and easy to press -- a feature lacking on lesser quality keypads. USB only.


In stock
Price: $159.95


Quantity:
Specifications
Features
Setup
Use

682-U: (USB-only version) USB HID compatible. Standard 6' USB cable with Type A

plug.

o 35 fully programmable keys with relegendable keycaps

o 3 double keys and a keycap puller included

o 6' USB cable with Type A plug (683-U)

o 2-level programmable, equivalent to 70 keys

o Programmable LED

o Supports USB  MultiMedia keys

o Supports F1 through F24

o Optional protective latex covers available

o Low power consumption

Mechanical Data:

Life Cycles 5 X 107

Key Type Cherry full-travel (non-tactile)

Operating Force 0.686N {79gf}

Color Dark grey

Number of Keys 35

Electrical Data:

Power Supply PS/2 or USB bus-powered

Key Roll-Over 2-key

Programmable LED Yes (Blue)

Dimensions:

Length x Width x Height 11.7cm x 15.3cm x 3.8cm (4.6” x 6.0” x 1.5”)

Environmental:

Operating Temperature 0 to 70 degrees C (32 to 158 degrees F)

Operating Humidity 0% to 98% non-condensing

FCC Rating Class B Device

Weight:

Keypad 0.4kg (0.75lbs)

Single Keypad Ship Weight 1.0kg (2.0lbs)

Interface:

Type PS/2 and/or USB

Cable Length 5ft (1.5m)

Connection PS/2 6-Pin Mini-Din and/or USB Standard Type A
