Genovation Controlpad Model 684


Genovation Controlpad Model 684
Previous  Up  Next"

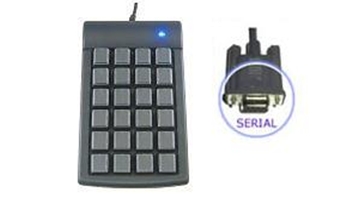

Genovation Controlpad Model 684

E-mail this product to a friend E-mail this product to a friend

The ControlPad 684 is a versatile, cost-effective, programmable keypad. Assembled with high quality Cherry MX keyswitches on a metal frame. The keys are durable, yet light and easy to press -- a feature lacking on lesser quality devices.

In stock
Price: $89.95


Quantity:
Specifications
Features
Setup
Use
  • RS-232 serial port operation or optional 5v DC power adapter
  • Female DB-9 connector (other options available)
  • Low power consumption
  • Uses the highest quality key switches rated at 50 million operations
  • Windows configuration software MacroMaster684
  • 1-year warranty
  • Specifications
    •   Attached cable is 1.5m (5 ft) long. Longer cables available.
    •   Input voltage range from +5v to +24v supplied from either the host or external supply. Standard model is port- powered. +5v DC adapter option available.
    •   Complies with FCC Class B standards
    •   Uses gold plated industrial quality mechanical key switches
    •   Total Switch travel is 3.5 mm (0.14")
    •   Operating force is 0.686N {79gf}
    •   Key life: 50,000,000 cycles
    •   Temperature range is 0 to 70 C (32 to 158 F)
    •   15.5cm x 9.6cm x 3.5cm (6.1" x 3.75" x 1.5")
    •   Standard settings are 9600 baud, 8N1.
    1200 baud through 57.6 kbaud supported.
    •   Includes redefinition program (MacroMaster684.exe)
    •   EEPROM is non-volatile, >100 year retention.

    • Keys:   24
    Interface:   RS-232C
    Programmable:   Yes
    LED:   Blue
    Color:   Dark Gray
    Dimension:   15.5cm x 9.6cm x 3.5cm (6.1" x 3.75" x 1.5")
    Unit Weight:   0.30 kg (0.65 lbs)
    Ship Weight:   0.45 kg (1.00 lbs)
    Operating Systems and Hosts
    OS Supported:   Keypad operates on any OS and any PC with RS232:
    - Windows / Mac OS / Linux / DOS / Embedded etc.

    Free Windows configuration software:
    - Windows 98/ME 2000/XP/Vista (32-bit)
