Mechanical Specifications

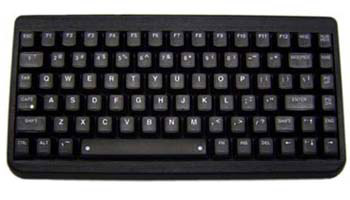

- 82 key compact design
- Overall dimensions: 12 in x 6 in x 1.5 in (305 mm x 152 mm x 38 mm)
- Weight: 2 lbs (907 g)
- 50 million cycle key switches with gold contacts
- Temperature:
Storage: -55°C to +85°C
Operating: -40°C to +70°C
- Plastic injection molded top with metal bottom for ease of customizing mounting techniques
Electrical Specifications
- +5VDC @ 220mA typical with red backlighting. Current consumption depends on LED color. Consult factory for details.
- Interface: USB and PS2 (Other interfaces possible, please consult factory)
- Radiated immunity: 20 volts/meter
- Dimming has eight levels of intensity controlled by "Fn" + "Ø" - "7" keys or "Fn" Up/Down cursor keys
Features
- Low profile, full size keys
- Tactile full travel key switches for superior feel vs. rubber keys
- LED backlighting good for life of product (200,000 hr LED's = 22yrs. continuous on)
- Standard red backlighting
- Black keycaps with backlit legends - unique 2 shot and sublimated process
- FCC, UL, CE, and RoHS compliant²
- Large backlit characters for ease of viewing
Mechanical Specifications
- 82 key compact design
- Overall dimensions: 12 in x 6 in x 1.5 in (305 mm x 152 mm x 38 mm)
- Weight: 2 lbs (907 g)
- 50 million cycle key switches with gold contacts
- Temperature: Storage temperature: -55°C to +85°C; Operating temperature: -40°C to +70°C
- Plastic injection molded top with metal bottom for ease of customizing mounting techniques
Electrical Specifications
- +5VDC @ 220mA typical with red backlighting. Current consumption depends on LED color. Consult factory for details.
- Interface: USB and PS2 (Other interfaces possible, please consult factory)
- Radiated immunity: 20 volts/meter
- Dimming has eight levels of intensity controlled by "Fn" + "Ø" - "7" keys or "Fn" Up/Down cursor keys
|
