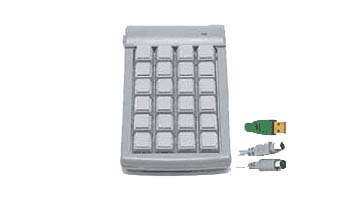

Genovation Controlpad Model 683 - PS/2 & USB Connectors
Previous  Up  Next"
Genovation Controlpad Model 683 - PS/2 & USB Connectors

E-mail this product to a friend E-mail this product to a friend

The Controlpad 683 is versatile, 24-key programmable keypad. The keys are relegendable, allowing the user to label them to fit a specific need. The keypad is easy to program using the Windows compatible software provided.

In stock
Price: $89.95


Quantity:
Specifications
Features
Setup
Use

Specifications

The Controlpad 683 is versatile, 24-key programmable keypad. Thekeys are relegendable, allowing the user to label them to fit a specific need.The internal FLASH memory allows the keypad to connect to most PCs regardless ofthe OS without installing resident software. The  keypad is easy to programusing the Windows compatible software provided. Assembled with high quality Cherry key switches, the keys are durable, yet light and easy to press--a feature lacking on lesser quality keypads. .

  • 24 fully programmable keys with relegendable keycaps

  • Pre-program internal FLASH memory and operate stand-alone

  • USB or PS2 interface

  • 1 year warranty

NOTE: Custom versions of this product can be ordered in OEM quantities. For simple modifications, customizing, and small quantity orders,please refer to our line of fully programmable and customizable keypads, or call us for assistance.

We can customize numeric keypads with replacement keys, keycaps,overlays, and templates. We can supply protective covers for most numeric keypads. There are a wide variety of keypad features available with many options to customize. We can help you pick just the right keypad for your job based upon your specifications. Contact our Sales Department by email or call us at 800-459-7931or 480-813-3100 (Fax:480-545-7212)

Features

Operating Systems Supported: Windows 95 / 98 / ME / NT /2000 / XP / Vista

Specifications

Mechanical Data:

  • Life Cycles: 5 X 107

  • Key Type: Cherry full-travel (non-tactile)

  • Operating Force: 0.686N{79gf}

  • Color: Dark grey

  • Number of Keys: 24

Electrical Data:

  • Power Supply: USB or PS2

  • Key Roll-Over: 2-key

Dimensions: Length x Width x Height 15.5cm x 9.6cm x3.5cm (6.1” x 3.75” x 1.5”)

Environmental:

  • Operating Temperature 0 to 70 degrees C (32 to 158 degrees F)

  • Operating Humidity 0% to 98% non-condensing

  • FCC Rating Class B Device

Weight:

  • Keypad 0.3kg (0.65lbs)

  • Single Keypad Ship Weight 1.0kg (2.0lbs)

Interface:

  • Type PS/2 or USB

  • Cable Length 5ft (1.4m)

  • Connection PS/2 6-Pin Mini-Din or USB Standard Type A
