Genovation Controlpad Model 681 - RS-232 & USB Connectors

E-mail this product to a friend E-mail this product to a friend

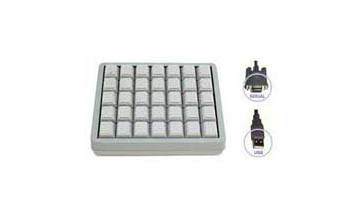

The Genovation Controlpad Model 681 is a versatile, 35-key programmable keypad. The keys are relegendable, allowing the user to label them to fit a specific need.

In stock
Price: $159.00


Quantity:
Specifications
Features
Setup
Use

Specifications

The Controlpad 681 is a versatile, 35-key programmable keypad. The keys arerelegendable, allowing the user to label them to fit a specific need. Theinternal FLASH memory allows the keypad to function stand alone on either astandard serial COM port or via a USB virtual serial COM port. The keypad iseasy to program using the Windows compatible software provided. Assembled withhigh quality Cherry key  switches, the keys are durable, yet light and easyto press—a feature lacking in lesser quality keypads. Available with a trueRS232 compatible DB-9 serial connection, or USB virtual serial connection fornewer PC’s without COM ports.

  • 35 fully programmable keys with relegendable keycaps
  • RS232 Serial interface or USB virtual serial COM port
  • Once programmed, will operate on any operating system as RS232 device
  • Outputs serial ASCII codes directly to your COM port
  • Uses the highest quality key switches rated at (50 million operations)
  • 1 year warranty

NOTE: Custom versions of this product can be ordered in OEMquantities. For simple modifications, customizing, and small quantity orders,please refer to our line of fully programmable and customizable keypads, or callus for assistance.

We can customize numeric keypads with replacement keys, keycaps,overlays, and templates. We can supply protective covers for most numerickeypads. There are a wide variety of keypad features available with many optionsto customize. We can help you pick just the right keypad for your job based uponyour specifications. Contact our Sales Department by emailor call us at 800-459-7931or 480-813-3100 (Fax:480-545-7212)

Features

Operating Systems Supported: Windows 95 / 98 / ME / NT / 2000 / XP /Vista

Specifications

Mechanical Data:

  • Life Cycles: 5 X 107
  • Key Type: Cherry full-travel (non-tactile)
  • Operating Force: 0.686N{79gf}
  • Color: Dark gray
  • Number of Keys: 35

Electrical Data:

  • Power Supply: 5vdc power supply (included), or USB self-powered
  • Key Roll-Over: 2-key

Dimensions: Length x Width x Height 11.7cm x 15.3cm x 3.8cm (4.6"x 6.0" x 1.5")

Environment:

  • Operating Temperature 0 to 70 degrees C (32 to 158 degrees F)
  • Operating Humidity 0% to 98% non-condensing
  • FCC Rating Class B Device

Weight:

  • Keypad: 0.4kg (0.75lbs)
  • Single Keypad Ship Weight: 1.0kg (2.0lbs)

Interface:

Type RS232C Serial, or USB virtual serial COM port device

Cable Length 5ft (1.4m)

Connection DB-9 female (DCE), or USB Type A

Ordering Information

NOTE: Custom versions of this product can be ordered in OEM quantities. Forsimple modifications, customizing, and small quantity orders, please refer toour line of fully programmable and customizable keypads, or call Sales forassistance.
