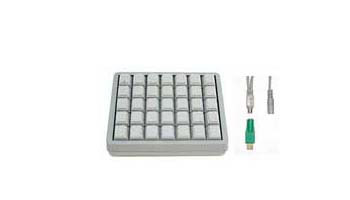

Genovation Controlpad Model 682 - PS/2 & USB Connectors
Previous  Up  Next"
Genovation Controlpad Model 682 - PS/2 & USB Connectors

E-mail this product to a friend E-mail this product to a friend

The Controlpad 682 is versatile, 35-key programmable keypad. The keys are relegendable, allowing the user to label them to fit a specific need. The keypad is easy to program using the Windows compatible software provided.

In stock
Price: $159.95


Quantity:
Specifications
Features
Setup
Use

Specifications

The Controlpad 682 is versatile, 35-key programmable keypad. Thekeys are relegendable, allowing the user to label them to fit a specific need.The internal FLASH memory allows the keypad to connect to most PCs regardless ofthe OS without installing resident software. The keypad is easy to program usingthe Windows compatible software provided. Assembled with high quality Cherry keyswitches, the keys are durable, yet light and easy to press--a feature lackingon lesser quality keypads. The PS2 "Y" wedge adapter allows thiskeypad to wedge a standard PS/2 external keyboard. Automatically detects PS/2 orUSB host ports, functions as PS/2 keyboard or USB HID keyboard interchangeably.

  • 35 fully programmable keys with relegendable keycaps
  • PS/2 keyboard with “Y” wedge adaptor for external PS/2 keyboards
  • Includes PS/2 to USB plug adaptor
  • Pre-program internal FLASH memory and operate stand-alone
  • Uses the highest quality key switches rated at (50 million operations)
  • Will boot PC stand-alone on PS/2 port or USB (USB boot protocol)
  • 1 year warranty
NOTE: Custom versions of this product can be ordered in OEMquantities. For simple modifications, customizing, and small quantity orders,please refer to our line of fully programmable and customizable keypads, or callus for assistance. We can customize numeric keypads with replacement keys, keycaps,overlays, and templates. We can supply protective covers for most numerickeypads. There are a wide variety of keypad features available with many optionsto customize. We can help you pick just the right keypad for your job based uponyour specifications. Contact our Sales Department by emailor call us at 800-459-7931or 480-813-3100 (Fax:480-545-7212)

Features

Operating Systems Supported: Windows 95 / 98 / ME / NT /2000 / XP / Vista

Specifications Mechanical Data:

  • Life Cycles: 5 X 107
  • Key Type: Cherry full-travel (non-tactile)
  • Operating Force: 0.686N{79gf}
  • Color: Dark gray
  • Number of Keys: 35
Electrical Data:
  • Power Supply: PS/2 or USB bus-powered
  • Key Roll-Over: 2-key
Dimensions: Length x Width x Height 11.7cm x 15.3cm x3.8cm (4.6” x 6.0” x 1.5”)

Environmental:

  • Operating Temperature 0 to 70 degrees C (32 to 158 degrees F)
  • Operating Humidity 0% to 98% non-condensing
  • FCC Rating Class B Device
Weight:
  • Keypad: 0.4kg (0.75lbs)
  • Single Keypad Ship Weight: 1.0kg (2.0lbs)
Interface:
  • Type PS/2 or USB
  • Cable Length 5ft (1.4m)
  • Connection PS/2 6-Pin Mini-Din or USB Standard Type A
