Genovation Micropad 631 Numeric Keypad - USB & PS/2 Connecto

E-mail this product to a friend E-mail this product to a friend

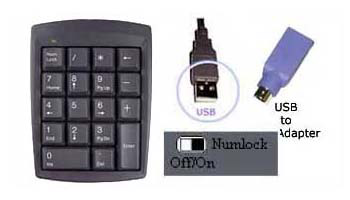

The Genovation Micropad 631 keypad is a USB and PS/2 numeric keypad. With supplied USB to PS/2 adapter, Micropad 631 can be used with any computer. Easy to use, no software to install.

In stock
Price: $39.95


Quantity:
Specifications
Features
Setup
Use

Specifications

The Micropad 631 keypad is a USB and PS/2numeric keypad. With supplied USB to PS/2 adapter, Micropad 631 can be used withany computer. Easy to use, no software to install, just plug in and startworking.

  • 18 keys
  • USB & PS/2 connections (USB to PS/2 adaptor included)
  • Full-size numeric keypad
  • “PLUG & PLAY”
  • Low power consumption
  • 1-year warranty
  • No software required
  • Includes two selectable Num-Lock modes for switching between number and cursor functions.
NOTE: Custom versions of this product can be ordered in OEMquantities. For simple modifications, customizing, and small quantity orders,please refer to our line of fully programmable and customizable keypads, or callus for assistance. We can customize numeric keypads with replacement keys, keycaps,overlays, and templates. We can supply protective covers for most numerickeypads. There are a wide variety of keypad features available with many optionsto customize. We can help you pick just the right keypad for your job based uponyour specifications. Contact our Sales Department by emailor call us at 800-459-7931or 480-813-3100 (Fax:480-545-7212)

Features

Operating Systems Supported:

  • USB: Windows 98se / ME / 2000 / XP / Vista / Mac OS X / Linux
  • PS/2: Any PS/2 compatible PC
  • Host Interface Modes- The Micropad 631 is a USB keypad primarily and includes a USB to PS/2 plug that allows it to function on standard PS/2 ports.
  • Num-Lock Mode (Standard)- The Num-Lock key on the keypad will toggle the Num-Lock state in the PC.
  • Num-Lock Mode (Internal)- The Num-Lock key on the keypad will switch between numbers and cursor functions internally and will not change the Num-Lock status on the PC.
Note: The alphabet section on some laptops may to switch to numbers when Num-Lock is “ON.” The “Internal” Num-Lock mode should be used for these laptops.

Specifications Mechanical Data:

  • Life Cycles: 1 X 107
  • Key Type Rubber membrane (non-tactile)
  • Operating Force: 0.539N{55gf}
  • Color: Dark gray
  • Number of Keys: 18
Electrical Data:
  • Power Supply: 5 volts USB or PS/2 bus powered (less than 20mA)
  • Key Roll-Over: 2-key
Dimensions: Length x Width x Height 12.5cm x 9.5cm x 2.5cm (5" x 3.75" x 1")

Environmental:

  • Operating Temperature 5 to 50 degrees C (41 to 122 degrees F)
  • Operating Humidity 10% to 80% non-condensing
  • FCC Rating Class B Device
Weight:
  • Keypad 0.16kg (0.35lbs)
  • Single Keypad Ship Weight 0.45kg (1.0lbs)
Interface:
  • Type USB 1.1 & 2.0 compatible (HID Human Interface)
  • IBM PS/2 standard keyboard
  • Cable Length 3ft (1m)
  • Connection (USB standard Type A) & (PS/2 6-pin Mini-DIN)
Optional protective covers are available.
