Genovation Model 683-U

E-mail this product to a friend E-mail this product to a friend

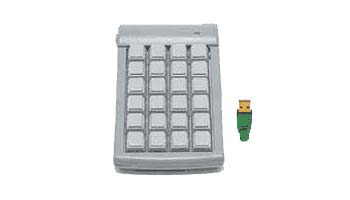

The Genovation 683 keypad is a 24-Key Controlpad Programmable Keypad.

In stock
Price: $89.95


Quantity:
Specifications
Features
Setup
Use

Specifications

The Controlpad 683 is versatile, 24-keyprogrammable keypad. The keys are relegendable, allowing the user to label them to fit a specific need. The internal FLASH memory allows the keypad to connect to most PCs regardless of the OS without installing resident software. The keypad is easy to program using the Windows compatible software provided.Assembled with high quality Cherry key switches, the keys are durable, yet light and easy to press--a feature lacking on lesser quality keypads.

  • 24 fully programmable keys with relegendable keycaps
  • Pre-program internal FLASH memory and operate stand-alone
  • Uses the highest quality key switches rated at (50 million operations)
  • 1 year warranty
  • USB

Features

Operating Systems Supported: Windows 95 / 98 / ME / NT /2000 / XP / Vista/windows 7

Specifications Mechanical Data:

  • Life Cycles: 5 X 107
  • Key Type: Cherry full-travel (non-tactile)
  • Operating Force: 0.686N{79gf}
  • Color: Dark grey
  • Number of Keys: 24
Electrical Data:
  • Power Supply: USB
  • Key Roll-Over: 2-key
Dimensions: Length x Width x Height 15.5cm x 9.6cm x3.5cm (6.1” x 3.75” x 1.5”)

Environmental:

  • Operating Temperature 0 to 70 degrees C (32 to 158 degrees F)
  • Operating Humidity 0% to 98% non-condensing
  • FCC Rating Class B Device
Weight:
  • Keypad 0.3kg (0.65lbs)
  • Single Keypad Ship Weight 1.0kg (2.0lbs)
Interface:
  • USB
  • Cable Length 5ft (1.4m)

NOTE: Custom versions of this product can be ordered in OEM quantities. For simple modifications, customizing, and small quantity orders, please refer to our line of fully programmable and customizable keypads, or call us for assistance. We can customize numeric keypads with replacement keys, keycaps,overlays, and templates. We can supply protective covers for most numeric keypads. There are a wide variety of keypad features available with many optionsto customize. We can help you pick just the right keypad for your job based uponyour specifications. Contact our Sales Department by emailor call us at 800-459-7931or 480-813-3100 (Fax:480-545-7212)
